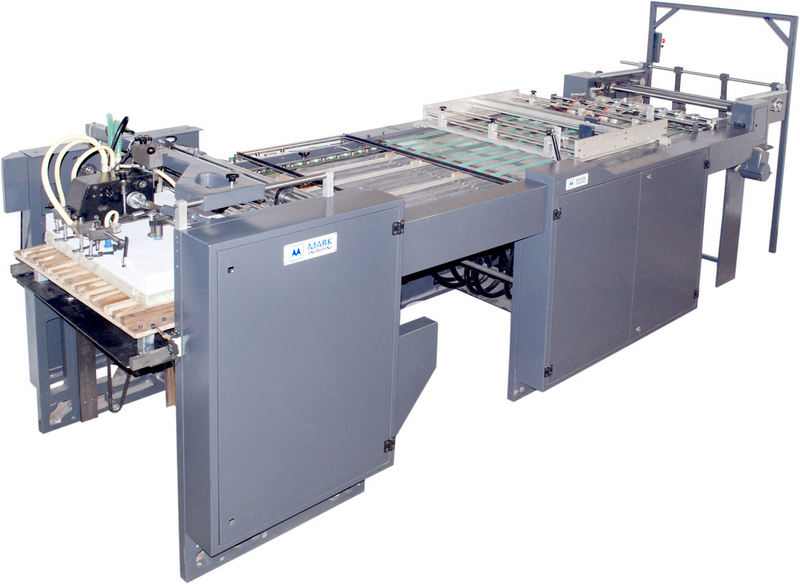

Variable Data Printing Machine STS - B2

Passionately made, Mark Engineering Variable Data Printing Machine STS - B2 is integrated with high speed stream feed sheet transport system and reliable side alignment conveyor. The variable data printing unit is fitted with multiple vacuum belts and graded C.I heavy frames for vibration free sheet transport during variable data printing even at high speeds.

Variable Data Printing Machine STS - B2 can handle stocks from 60 gsm to 500 gsm. Variable Data Printing Machine STS - B2 works with minimum sheet size of A3 to Maximum sheet size of B2. We have meticulously attended every small detail from design of each part to quick after sales service to make the Variable Data Printing Machine - B2 run trouble free for many years. With optional features like pre-loading device production can be increased as high  as 4 times the manual sheet feed production.

Application: Variable Data Printing Machine STS - B2 can be used for variable data printing of barcode printing, ticket printing, numbering, mail addressing, personalized cheques, application forms, mailers, examination forms, hall tickets, courier slips, photographs, telecom cards, security printing applications, security packaging, special packaging applications.

Optional Attachments: Pre Loading Device for Feeder, rotary multi perforation device, rotary slitting device, bi directional perforation device, online sheet inspection system, additional stacker/bin for rejected sheets with gate, batch inserter, rejected sheet batch inserter, touch panel with configurable programs for various applications.
Variable Data Printing Machine STS - B2 Salient Features

  • Heavy duty frame structure
  • Proven high speed stream feeding technology
  • Heavy duty, vibration free variable data printing conveyor with graded cast iron frames
  • Standard design to attach with any VDP system supplier
  • Double sheet detection
  • Heavy duty pile lift system
  • Ergonomically designed control panel for easy machine operation with optional touch panel for addtional programs flexibility.
  • PLC based control panel, automatic speed control between feeder and VDP conveyor.
  • Digital sheet counter & RPM meter
  • Best quality standard components & electrical parts used
  • Pre-loader for reduced lead time (optional)
  • Speed: up to 10,000 SPH*


Variable Data Printing Machine STS - B2 Applications

Application: Variable Data Printing Machine - B2 can be used for variable data printing of barcode printing, ticket printing, numbering, mail addressing, personalized cheques, application forms, mailers, examination forms, hall tickets, courier slips, photographs, telecom cards, security printing applications, security packaging, special packaging applications.

  • Variable Data Printing Machine for barcodes printing
  • Variable Data Printing Machine for ticket printing
  • Variable Data Printing Machine for numbering
  • Variable Data Printing Machine for mail addressing
  • Variable Data Printing Machine for personalized cheques
  • Variable Data Printing Machine for application forms
  • Variable Data Printing Machine for hall tickets
  • Variable Data Printing Machine for mailers
  • Variable Data Printing Machine for examination forms
  • Variable Data Printing Machine for courier slips
  • Variable Data Printing Machine for photographs
  • Variable Data Printing Machine for telecom cards
  • Variable Data Printing Machine for security printing applications
  • Variable Data Printing Machine for security packaging
  • Variable Data Printing Machine for special packaging applications
TECHNICAL DATA (mm)
MARK Variable Data Printing Machine STS B2 5181
MARK Variable Data Printing Machine STS B2 6191
MARK Variable Data Printing Machine STS B1 71102
MARK Variable Data Printing Machine STS B1 75107
Maximum Sheet size
510 mm x 810 mm
610 mm x 910 mm
710 mm x 1020 mm
750 mm x 1070 mm
Minimum Sheet Size
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
Stock Range
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
Feeder Pile Height
950 mm
950 mm
950 mm
950 mm
Delivery Height in Coating
M/c. From Floor
800 mm To 1050 mm
800 mm To 1050 mm
800 mm To 1050 mm
800 mm To 1050 mm
Feeding Height in Feeder
from Floor
1065 mm
1065 mm
1065 mm
1065 mm
Max. Speed*
10,000 SPH
10,000 SPH
10,000 SPH
10,000 SPH
Drive motor A.C Variable
1 HP
1 HP
1 HP
1 HP
Feeder Pile Motor A.C
1 HP
1 HP
1 HP
1 HP
Pump Motor For Feeder
3 HP
3 HP
3 HP
3 HP
Floor Space Without Preloader
1800 (L) x 1450 (W) x 1500 (H)
2000 (L) x 1550 (W) x 1500 (H)
2200 (L) x 1650 (W) x 1500 (H)
2250 (L) x 1700 (W) x 1500 (H)
