Case Binding Machine SCM - 55

Mark case binding machine SCM - 55 is automation to the conventional manual case making process. SCM - 55 ensures high productivity, superior & uniform case quality throughout the job run. SCM - 55 is designed and developed with special concern on consistent quality, simple operation, large variety of jobs, ease of maintenance & most suitable size for binding. SCM 55 has automatic board gauge up-down system to keep operator handsfree. It has amazingly short new job setup time of less than 5 minutes.

Applications : Case making for hard bound books, diaries, files, registers, notebooks, calendars, clip boards etc. Back to back pasting & pressing for duplex boards, pharmaceutical catalogs and other packaging items.
Case Binding Machine SCM - 55 Salient Features

  • Automatic glue tank temperature control with auto cut off for optimum power saving
  • Digital counter
  • Uniform thickness of glue layer on title sheet with easy adjust control
  • Easy mounting & dismounting of glue tank
  • Multiple glue tank for different glue (optional)
  • Pneumatic on off for spine board gauges
  • Vacuum table and  vacuum blower for easy handling of thin sheets
  • Precise title and Spine (board) gauging unit up to 4 spines
  • Easy and rapidly adjustable gauging system
  • Short make ready time (Approx. 20 mins for hot glue, immediate for cold glue)
  • Less than 5 minutes for size changes
  • 100 Micron thick hard chrome plated roller/ Stainless Steel rollers (Optional)
  • Best quality control panel components used to make machine most reliable.


Case Binding Machine SCM - 55 Applications:

  • Case binding machine for hard bound books
  • Case binding machien for diary
  • Case binding machine for files
  • Case binding machine for register
  • Case binding machine for notebook
  • Case binding machine for calendar
  • Case binding machine for clip board, exam pad
  • Case binding machine for pharmaceutical catalog

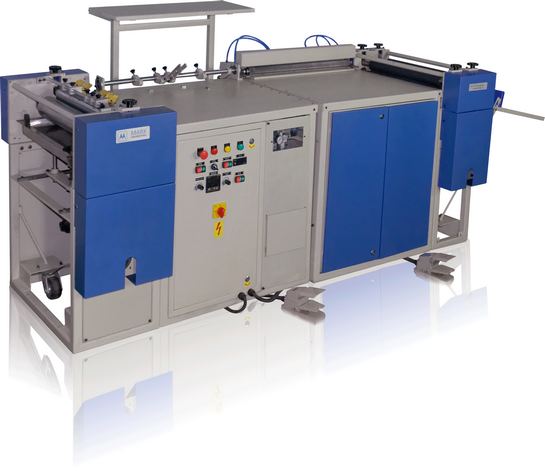

Case Binding Machine SCM 55
Case Binding Machine SCM - 55: Semi Automatic Case Maker
Case Binding Machine SCM 55 Brochure
TECHNICAL DATA (mm)
CASE MAKER SCM 55
Min. case size
150 mm x 150 mm
Max. case size
500 mm x 750 mm
Paper thickness
70 gsm To 170 gsm
Board thickness
0.5 mm To 5 mm
Turning in width
15 To 25 mm
Speed*
200 case/hr depending upon case size, material
Glue type
Hot / Cold
Pneumatic pressure
6 - 8 bar
Power
2 HP for 2 AC variable speed motors, 2 kW for heater
Materials
Paper, laminated, paper, plastic coated paper, cloth
Floor space**
1200 mm (L) x 2800 mm  (W) x 1500 mm (H)
1 HP air compressor
to be provided by client
