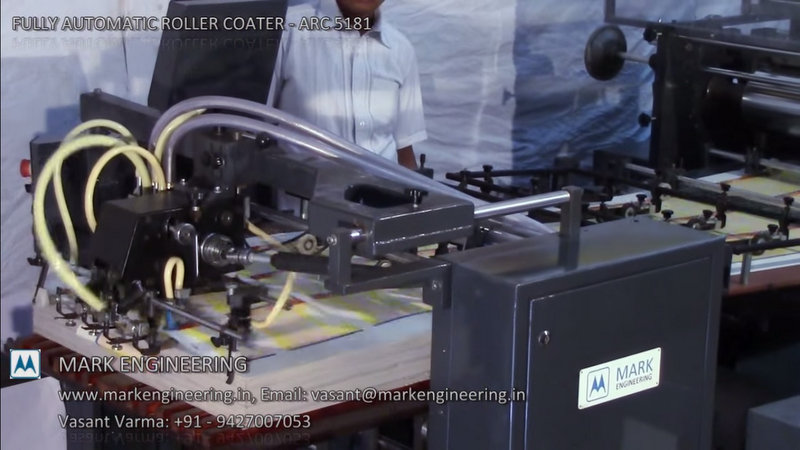

Fully Automatic UV, Aqua, Varnish Roller Coater ARC

Passionately made, Mark Engineering Automatic UV Aqua, Varnish Roller Coater ARC is integrated with high speed stream feed sheet feeder, robust roller coater, driers and high pile stacker capable of coating water based (Aqua), UV and Solvent based varnish coatings and Blister Coatings.

Mark Engineering Automatic Roller Coater ARC is integrated with heavy duty graded C.I framed feeder, heavy duty steel frames for coating station for vibration free sheet transport during coating even at high speeds. Automatic Roller Coater ARC has nearly horizontal line paper movement path with high feeder pile height. Effective Feeder and Stacker pile heights are equal to increase production output. The coating station is integrated with high roller diameter with high pipe thickness for long running life and stability. Sturdiness and higher stability of the machine results into high gloss coating with less usage of coating. Ultimately savings of coating liquid turns into competitive advantage.

Automatic UV, Aqua, Varnish Roller Coater ARC can handle stocks from 170 gsm to 500 gsm. Automatic Roller Coater ARC works with minimum sheet size of A3 to Maximum sheet size of B2. Automatic Roller Coater ARC B1 can feed maximum sheet size of B1. We have meticulously attended every small detail from design of each part to quick after sales service to make the Automatic Roller Coater ARC run trouble free for many years. With optional features like pre-loading device production can be increased as high as 4 times the manual sheet feed production.

Application: Automatic UV, Aqua, Varnish Roller Coater ARC can be used for full sheet coating for playing cards, pharmaceutical boxes, food grade water based coating, blister coating for packaging, shoe box packaging for high scuff resistance, magazine cover UV coating etc.

Optional Attachments: Pre Loading Device for Feeder, anti-static device, batch tag inserter, sheet side alignment conveyor, strip coating mechanism, main roller replacement crain inline sheet cleaning device, inline sheet ironing device, inline dual coater for priming and UV coating etc.

Fully Automatic UV, Aqua, Varnish Roller Coater ARC Salient Features

Heavy duty frame structure
Easy to operate and maintain
Quick size change over, no make ready time.
Proven high speed stream feeding technology
Heavy duty, vibration free coating station with rugged frame structure
Big diameter, high wall thickness rollers provides very fine layer of coating resulting in to tons of coating liquid savings per year
Fine coating layer thickness control
Double sheet detection
Heavy duty pile lift system with high pile design
Equal pile height of feeder and stacker for increase in production.
Ergonomically designed control panel for easy machine operation with optional touch panel for addtional programs flexibility.
PLC based control panel, automatic speed control between feeder, coating, dryer and stacker.
Digital sheet counter & RPM meter
Pre-loader for reduced lead time (optional)
Optional inline sheet cleaning device
Optional inline sheet ironing device
Optional inline dual coater with priming and UV coating applications
Optional strip coating mechanism
Optional anti-static device
Global quality standard components & electrical parts used
Speed: up to 10,000 SPH*

Fully Automatic UV, Aqua, Varnish Roller Coater ARC Applications

Application: Automatic UV, Aqueous, Varnish Roller Coater ARC can be used for full sheet coating for playing cards, pharmaceutical boxes, food grade water based coating, blister coating for packaging, shoe box packaging for high scuff resistance, magazine cover UV coating and many other applications etc.

Automatic UV, Aqueous, Varnish Roller Coater for playing cards UV, Aqueous, Solvent Varnish Coatings
Automatic UV, Aqueous, Varnish Roller Coater for high slip coating
Automatic UV, Aqueous, Varnish Roller Coater for pharmaceutical boxes
Automatic UV, Aqueous, Varnish Roller Coater for food grade aqueous coating
Automatic UV, Aqueous, Varnish Roller Coater for blister coating for packaging boxes
Automatic UV, Aqueous, Varnish Roller Coater for shoe box packaging for high scuff resistance
Automatic UV, Aqueous, Varnish Roller Coater for magazine cover UV coating
Automatic UV, Aqueous, Varnish Roller Coater for anti slip coating on paper
Automatic UV, Aqueous, Varnish Roller Coater for

TECHNICAL DATA (mm)	MARK Automatic Roller Coater ARC B2 5181	MARK Automatic Roller Coater ARC B2 6191	MARK Automatic Roller Coater ARC B1 71102	MARK Automatic Roller Coater ARC B1 75107
Maximum Sheet size	510 mm x 810 mm	610 mm x 910 mm	710 mm x 1020 mm	750 mm x 1070 mm
Minimum Sheet Size	400 mm x 400 mm	400 mm x 400 mm	400 mm x 400 mm	400 mm x 400 mm
Stock Range	0.05 mm To 0.5 mm	0.05 mm To 0.5 mm	0.05 mm To 0.5 mm	0.05 mm To 0.5 mm
Feeder Pile Height	950 mm	950 mm	950 mm	950 mm
Delivery Height in Coating M/c. From Floor	800 mm To 1050 mm	800 mm To 1050 mm	800 mm To 1050 mm	800 mm To 1050 mm
Feeding Height in Feeder from Floor	1065 mm	1065 mm	1065 mm	1065 mm
Max. Speed*	10,000 SPH	10,000 SPH	10,000 SPH	10,000 SPH
Drive motor A.C Variable	1 HP	1 HP	1 HP	1 HP
Feeder Pile Motor A.C	1 HP	1 HP	1 HP	1 HP
Pump Motor For Feeder	3 HP	3 HP	3 HP	3 HP
Floor Space Without Preloader	1800 (L) x 1450 (W) x 1500 (H)	2000 (L) x 1550 (W) x 1500 (H)	2200 (L) x 1650 (W) x 1500 (H)	2250 (L) x 1700 (W) x 1500 (H)
