Automatic Sheet Stacker M S1

Sheet Stacker M S1 accurately automates the sheet collection and stacking function after the sheet leaves lamination sheeter, coater or any other processing machine. Sheets are stacked accurately in pallets which can be removed from stacker using pallet loaders, this reduces labour, saves time, money for organization. The accurately stacked sheet are ready for next process without delay.

Other Sheet Stackers : Stackers for lamination sheeter, UV, Aqueous, IR driers, creasing, perforating, powdering, sheet cleaning machines.
Automatic Sheet Stacker M S1 Salient Features

  • Heavy duty frame structure
  • Heavy duty pile lift system
  • Digital sheet counter & RPM meter
  • PLC based intelligent control panel
  • Automatic pile down control with sensor
  • Pneumatic side joggers
  • Oscillating back joggers
  • Standard design to attach with roller coater, lamination sheeter and other processing machines by all manufacturers
  • Independent stacker drive with A.C variable speed motor


Automatic Sheet Stacker M S1 Applications

  • Sheet Stacker for lamination sheeter
  • Sheet Stacker for UV driers
  • Sheet Stacker for creasing machine
  • Sheet Stacker for powdering machine
  • Sheet Stacker for sheet cleaning machine
  • Sheet Stacker for ruling machine
  • Sheet Stacker for online book making machine
  • Sheet Stacker for variable data printing machine
  • Sheet Stacker for offline sheet inspection machine

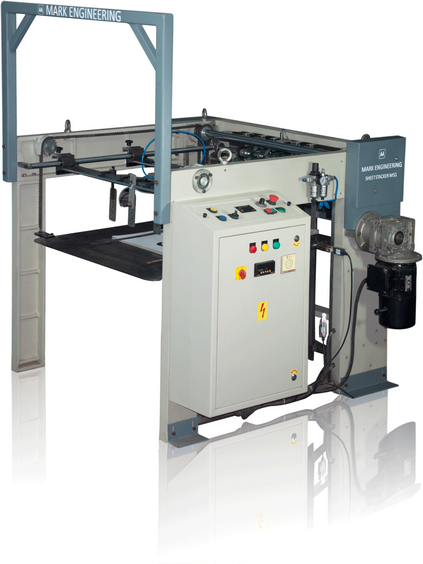

Automatic Sheet Stacker
Automatic Sheet Stacker M S1: Automatic sheet stacker for Lamination Sheeter, Roller Coater, Creasing, Perforating, powdering..
Automatic Sheet Stacker Brochure
TECHNICAL DATA (mm)
MARK S1 5181
MARK S1 6191
MARK S1 71102
MARK S1 10271
Maximum Sheet size (L x W)
510 mm x 810 mm
610 mm x 910 mm
710 mm x 1020 mm
1020 mm x 710 mm
Minimum Sheet Size (L x W)
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
Stock Range
0.1 mm To 0.6 mm
0.1 mm To 0.6 mm
0.1 mm To 0.6 mm
0.1 mm To 0.6 mm
Paper Thickness
100 gsm to 600 gsm
100 gsm to 600 gsm
100 gsm to 600 gsm
100 gsm to 600 gsm
Stacker Pile Height
Customized as per Client's sheet processing machine
Delivery Height in Coating
M/c. From Floor
Stacking Height in Stacker
from Floor
Max. Speed*
8,000 SPH
8,000 SPH
8,000 SPH
8,000 SPH
Drive motor A.C Variable
1 HP
1 HP
1 HP
1 HP
Feeder Pile Motor A.C
1 HP
1 HP
1 HP
1 HP
Compressed Air
6 - 8 bar
6 - 8 bar
6 - 8 bar
6 - 8 bar
Floor Space (Approx.)*
1200 (L) x 1600 (W) x 2100 (H)
1400 (L) x 1700 (W) x 2100 (H)
1600 (L) x 18000 (W) x 2100 (H)
2300 (L) x 1600 (W) x 2100 (H)
