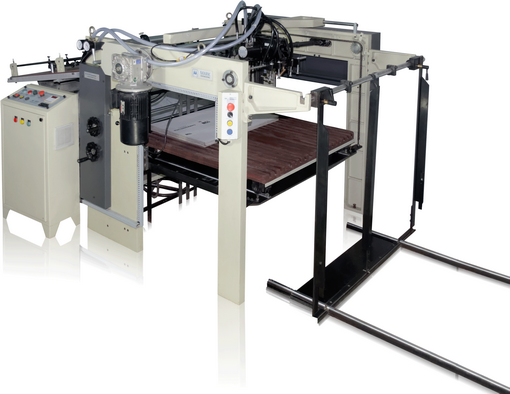

Automatic Sheet Feeder M F2

Passionately made, Mark Engineering sheet feeder M F2 is automation of manual sheet feeding into the roller coater equipment. With optional features like pre-loading device production can be increased as high as 4 times the manual sheet feed production. We have meticulously attended every small detail from design of each part to quick after sales service to make the Mark F2 run trouble free for many years.

Application: Automatic paper feeding in UV, Aqueous and Varnish roller coater.

Other Automatic Feeders: Automatic feeder for creasing, perforating, lamination, board pasting,
folding etc.

Automatic Sheet Feeder M F2 Salient Features

  • Heavy duty frame structure
  • Proven high speed stream feeding technology
  • Standard design to attach with roller coater by all manufacturers
  • Double sheet detection
  • Heavy duty pile lift system
  • Digital sheet counter & RPM meter
  • Best quality standard components & electrical parts used
  • Independent machine driving system
  • Pre-loader for reduced lead time (optional)
  • Speed: up to 12,000 SPH*


Automatic Sheet Feeder M F2 Applications

  • Sheet Feeder for automatic paper feed in varnish / aqueous / UV roller coater
  • Sheet Feeder for automatic paper feed in powdering machine
  • Sheet Feeder for automatic paper feed in gluing machine
  • Sheet Feeder for automatic paper feed in lamination machine
  • Sheet Feeder for automatic paper feed in printing machine
  • Sheet Feeder for automatic paper feed in sheet cleaning machine
  • Sheet Feeder for online book making machine
  • Sheet Feeder for variable data printing machine
  • Sheet Feeder for offline sheet inspection machine
TECHNICAL DATA (mm)
MARK F2 5181
MARK F2 6191
MARK F2 71102
MARK F2 75107
Maximum Sheet size
510 mm x 810 mm
610 mm x 910 mm
710 mm x 1020 mm
750 mm x 1070 mm
Minimum Sheet Size
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
400 mm x 400 mm
Stock Range
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
Feeder Pile Height
950 mm
950 mm
950 mm
950 mm
Delivery Height in Coating
M/c. From Floor
800 mm To 1050 mm
800 mm To 1050 mm
800 mm To 1050 mm
800 mm To 1050 mm
Feeding Height in Feeder
from Floor
1065 mm
1065 mm
1065 mm
1065 mm
Max. Speed*
12,000 SPH
12,000 SPH
12,000 SPH
12,000 SPH
Drive motor A.C Variable
1 HP
1 HP
1 HP
1 HP
Feeder Pile Motor A.C
1 HP
1 HP
1 HP
1 HP
Pump Motor For Feeder
3 HP
3 HP
3 HP
3 HP
Floor Space Without Preloader
1800 (L) x 1450 (W) x 1500 (H)
2000 (L) x 1550 (W) x 1500 (H)
2200 (L) x 1650 (W) x 1500 (H)
2250 (L) x 1700 (W) x 1500 (H)
Automatic Sheet Feeder
Automatic Sheet Feeder M F2: Automatic Feeder for UV, Aqueous and Varnish Roller Coater
