Automatic Lamination Machine AL - 1

Automatic Lamination Machine AL 1 is collaborative endeavour between Mark Engineering (renowned for AutoFeeders/Stackers) and Hy-Tek Print Mac (specializes in Aqueous / Thermal Laminators). Automatic Lamination AL 1 is integrated with best quality automation and electronics components with ergonomic touch screen for ease of operation, precise underlap control and most reliable machine performance. Super finished chrome plate roller ensures best quality results in Thermal, Aqueous or Dual lamination. Optional pre-loading device enhances production 4 times compared to manual  feeding. Every detail from design to after sales service is meticulously attended to make the AL 1 run trouble free for many years. AL 1 is virtually maintenance free.

Application: Fully Automatic Lamination Machine for Aqueous/ Thermal /Dual lamination
Other Automatic Feeders: Automatic feeder for creasing, perforating, roller coater, board pasting, folding etc.
Automatic Lamination Machine Salient Features

  • Automatic Lamination is having Heavy duty frame structure
  • Proven high speed stream feeding technology
  • Attachable with lamination machine by all manufacturer (with Hy-Tek Print Mac, Bangalore for India)
  • Double sheet detection
  • Heavy duty pile lift system
  • Automatic Lamination is Ergonomically designed touch screen or HMI for easy machine operation
  • High end PLC and Servo motor controlled drive system for precise underlap control
  • Optional pre-loader for reduced lead time
  • Hardened and profile ground gear train to facilitate precise paper feed and to diminish noise decibel level
  • Speed up to 12,000 SPH
  • Dual advantage of thermal & aqueous lamination
  • Duplex unwind shafts, micro adjustable laterally, with “film trim slitter” & “perforating mechanism”
  • 10” Dia.super polished, laminating chromed roller
  • PID type temperature control unit with digital temp. display
  • Rewind station with heavy duty clutch for take-up of aqueous & low gsm substrate.
  • Supplementary adhesive tank (Approx) 25 kg
  • Sheet counter with digital read-out
  • Carbon steel helical gear train, duly toughened and profile ground to deminish decibel level

Automatic Lamination Machine Applications:

Automatic lamination machine for cold Polyester film
Automatic lamination machine for window lamination
Automatic lamination machine for cold BOPP film
Automatic lamination machine for cold PVC film
Automatic lamination machine for silver metalized film thermal
Automatic lamination machine for gold metalized film cold
Automatic lamination machine for BOPP film thermal
Automatic lamination machine for Polyester film thermal
Automatic lamination machine for gold metalized film thermal
Automatic lamination machine for holographic films thermal
Automatic lamination machine for cold silver metalized film
Automatic lamination machine for window lamination two side in one pass - perfecter cold
Automatic lamination machine for BOPP film thermal two side in one pass - perfecter
Automatic lamination machine for Polyester film thermal two side in one pass - perfecter
AUTOMATIC LAMINATION TECHNICAL DATA (mm)
AUTOMATIC LAMINATION MARK AL 1 10271
AUTOMATIC LAMINATION MARK AL 1 9161
Maximum Sheet size
1020 mm (L )x 710 mm (W)
910 mm (L) x 610 mm (W)
Minimum Sheet Size
400 mm x 400 mm
400 mm x 400 mm
Stock Range
0.05 mm To 0.5 mm
0.05 mm To 0.5 mm
Feeder Pile Height
950 mm
950 mm
Feeding Height in Feeder
from Floor
1065 mm
1065 mm
Laminating speed* Aqueous
0 - 65 m/min
0 - 65 m/min
Laminating speed* Thermal
0 - 25 m/min
0 - 25 m/min
Feeder drive motor A.C servo
1 kW
1 kW
Drive pile motor with break
1 HP
1 HP
Feeder Pile Motor A.C
1 HP
1 HP
Pump Motor For Feeder
(not included with the machine)
3 HP
3 HP
Lamination drive motor A.C variable
2 HP
2 HP
Heater for thermal lamination
3 kW
3 kW
Floor Space Without Preloader
1800 (W) x 3300 (L) x 2400 (H)
1700 (W) x 3100 (L) x 2400 (H)

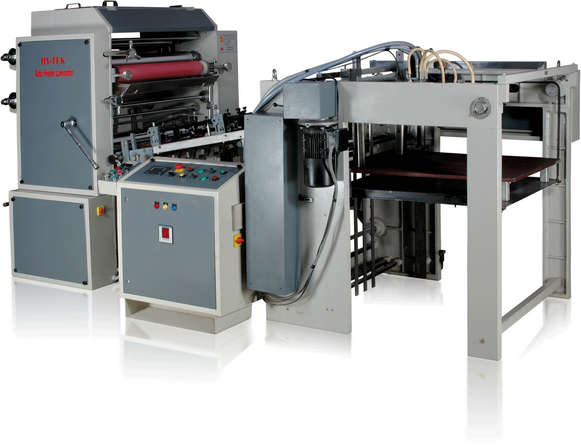

Automatic Lamination Machine AL 1
Automatic Lamination Machine AL 1
